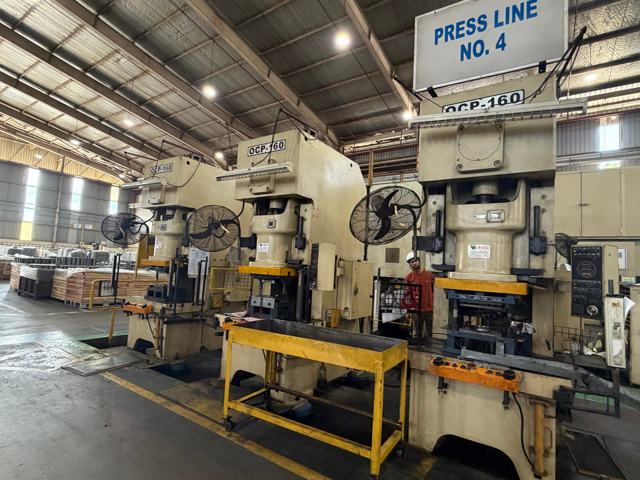

CHIN FONG · GI-B07
CHIN FONG OCP-160 160 Ton Mechanical Press
- Model
- OCP-160
- Type
- Mechanical Press
- Capacity
- 160 ton
- Year
- 2011
- Location
- Available on request

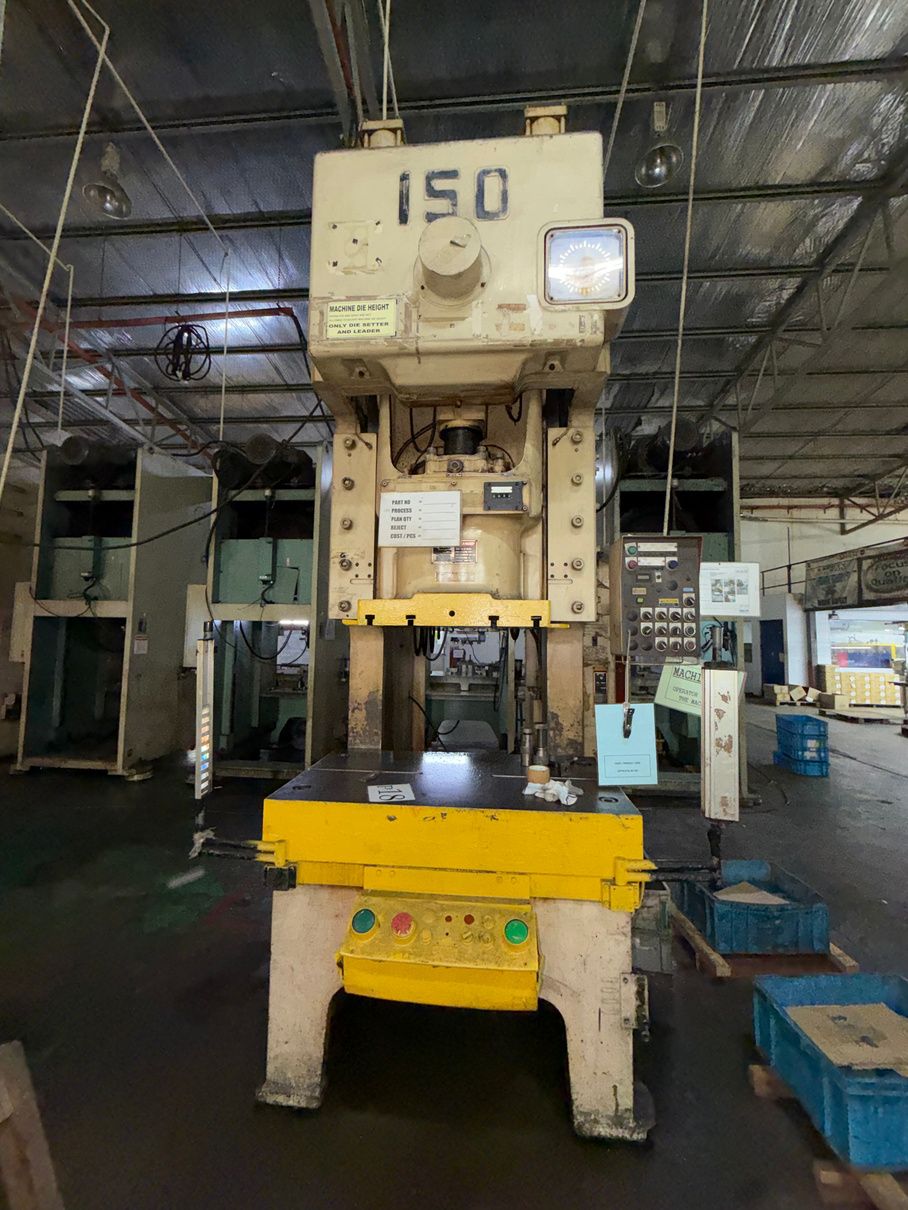

Machine summary
- Manufacturer
- AMADA
- Model
- TP150
- Machine type
- Mechanical Press
- Capacity
- 150 ton
- Year
- 1992
- Location
- Available on request
- Condition
- Used
- Availability
- Available

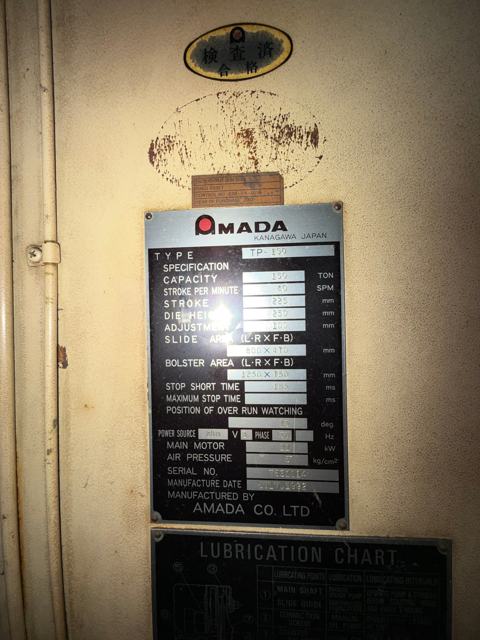

Technical specifications
| Capacity | 150 ton |
|---|---|
| Manufacturer | AMADA |
| Model | TP150 |
| Year | 1992 |
| Serial no. | 7631114 |
| Strokes per minute (SPM) | 40 spm |
| Slide stroke | 225 mm |
| Die height | 250 mm |
| Slide adjustment | 100 mm |
| Slide dimensions (LR × FB) | 800 × 470 mm |
| Bolster dimensions (LR × FB) | 1250 × 750 mm |
| Location | Available on request |
| Condition | Used |
Specifications are taken from the machine records supplied to us and should be confirmed before purchase. Anything not listed is available on request.
