SEYI · GI-A05
SEYI SN1-200 200 Ton Mechanical Press
- Model
- SN1-200
- Type
- Mechanical Press
- Capacity
- 200 ton
- Year
- 2010
- Location
- Available on request

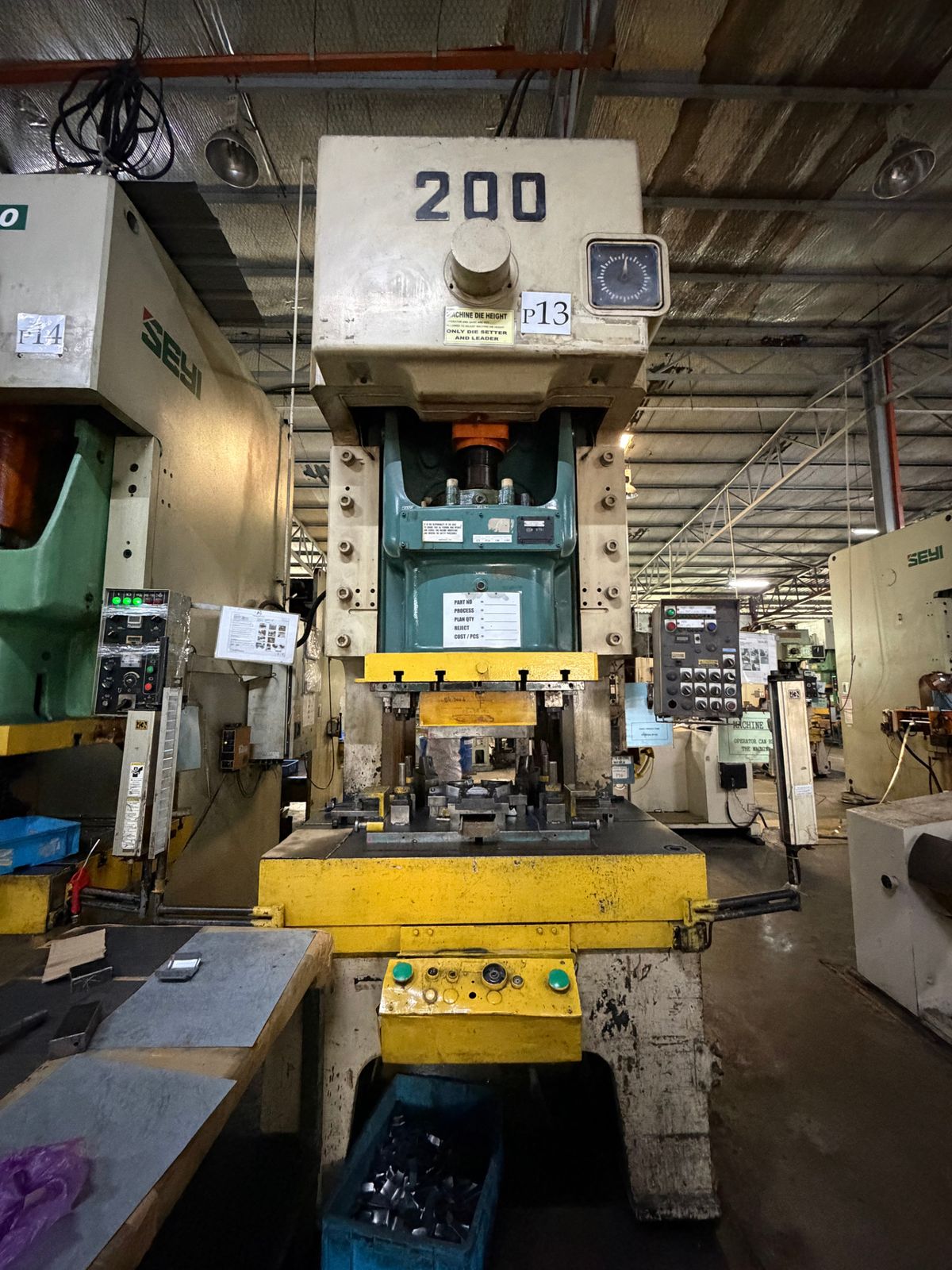

Machine summary
- Manufacturer
- AMADA
- Model
- TP200
- Machine type
- Mechanical Press
- Capacity
- 200 ton
- Year
- Available on request
- Location
- Available on request
- Condition
- Used
- Availability
- Available

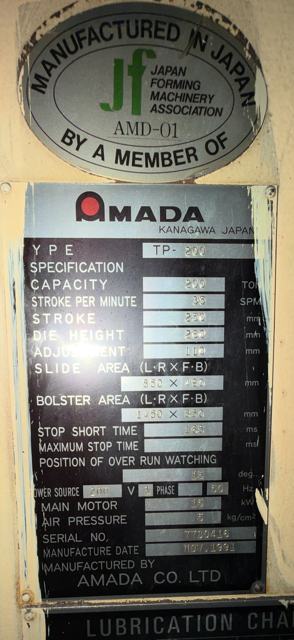

Technical specifications
| Capacity | 200 ton |
|---|---|
| Manufacturer | AMADA |
| Model | TP200 |
| Year | Available on request |
| Serial no. | 7730416 |
| Strokes per minute (SPM) | 45 spm |
| Slide stroke | 250 mm |
| Die height | 260 mm |
| Slide adjustment | 110 mm |
| Slide dimensions (LR × FB) | 850 × 490 |
| Bolster dimensions (LR × FB) | 1450 × 850 |
| Location | Available on request |
| Condition | Used |
Specifications are taken from the machine records supplied to us and should be confirmed before purchase. Anything not listed is available on request.
