SEYI · GI-A05
SEYI SN1-200 200 Ton Mechanical Press
- Model
- SN1-200
- Type
- Mechanical Press
- Capacity
- 200 ton
- Year
- 2010
- Location
- Available on request
Machine summary
- Manufacturer
- KOMATSU
- Model
- OBS 200-3
- Machine type
- Mechanical Press
- Capacity
- 200 ton
- Year
- 1987
- Location
- Available on request
- Condition
- Used
- Availability
- Available

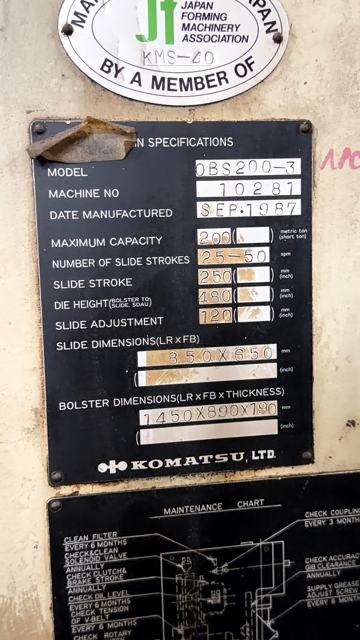

Technical specifications
| Capacity | 200 ton |
|---|---|
| Manufacturer | KOMATSU |
| Model | OBS 200-3 |
| Year | 1987 |
| Serial no. | 10281 |
| Date of manufacture | 1987/09 |
| Strokes per minute (SPM) | 25–50 spm |
| Slide stroke | 250 mm |
| Die height | 480 mm |
| Slide adjustment | 120 mm |
| Slide dimensions (LR × FB) | 850 × 650 |
| Bolster dimensions (LR × FB) | 1450 × 890 × 190 (LR × FB × thickness) |
| Location | Available on request |
| Condition | Used |
Specifications are taken from the machine records supplied to us and should be confirmed before purchase. Anything not listed is available on request.
