SEYI · GI-A05

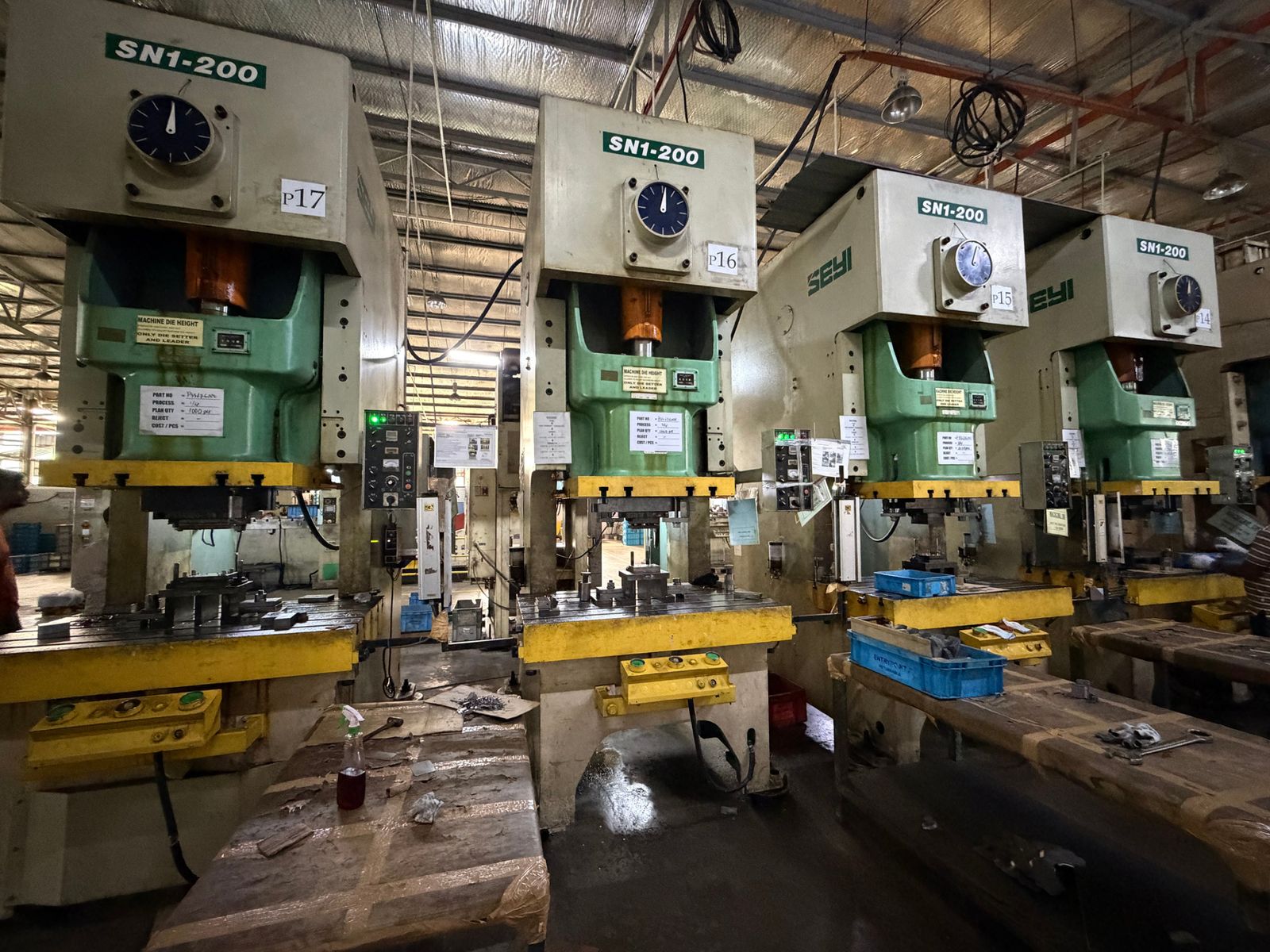

SEYI SN1-200 200 Ton Mechanical Press
- Model
- SN1-200
- Type
- Mechanical Press
- Capacity
- 200 ton
- Year
- 2010
- Location
- Available on request
Machine summary
- Manufacturer
- SEYI
- Model
- SN1-200
- Machine type
- Mechanical Press
- Capacity
- 200 ton
- Year
- 2008
- Location
- Available on request
- Condition
- Used
- Availability
- Available

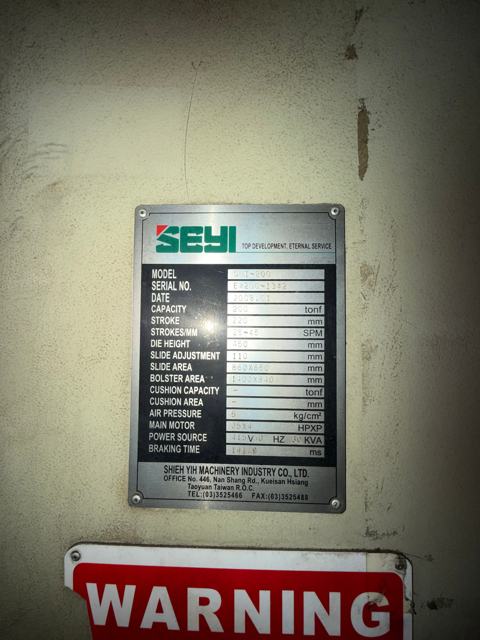

Technical specifications
| Capacity | 200 ton |
|---|---|
| Manufacturer | SEYI |
| Model | SN1-200 |
| Year | 2008 |
| Serial no. | EW200-1342 |
| Strokes per minute (SPM) | 25–45 spm |
| Slide stroke | 220 mm |
| Die height | 450 mm |
| Slide adjustment | 110 mm |
| Slide dimensions (LR × FB) | 860 × 650 mm |
| Bolster dimensions (LR × FB) | 1400 × 840 mm |
| Location | Available on request |
| Condition | Used |
Specifications are taken from the machine records supplied to us and should be confirmed before purchase. Anything not listed is available on request.
